IoT Bubble Machine

(Jump to downloads)

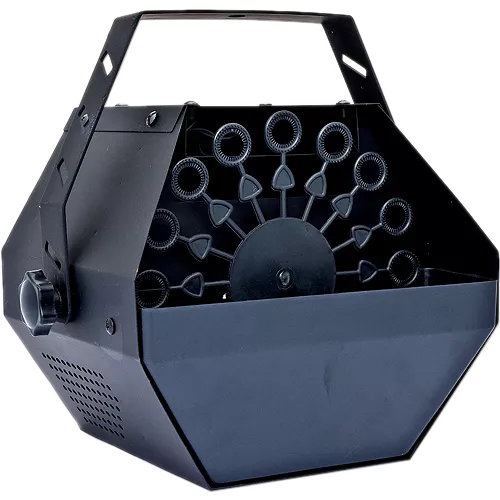

For a while i've had this bubble machine kicking around and not too long ago I was asked to set it up for a baby shower. My niece seems to love bubbles as most children do, so i agreed. After i finally dug it out of storage i remembered one key problem. Left unattended it makes quite the slippery mess so i began to think to myself, "how can i make this less of a distaster without managing it the entire time?"

After pulling it apart i realized that it was actually quite simple, and there was a lot of open space! In fact the only real componets were a computer fan and a motor to rotate the bubble carousel. Even better, the fan had a speed control input which i could take advantage of to control the flow of bubbles. Extra better, the whole thing seemed to run on 12V DC.

I started by selecting a suitable microcontroller, I went with one of my favorites (Adafruit HUZZAH ESP8266 Breakout) I didn't need many control pins, and they are easy to work with. After that i pulled out a little stepdown converter to create a 5v circuit drawing from the 12V source.

Connecting the speed control from the fan to the board was also easy, no fancy conversions needed!

Arduino ESP8266 Code
#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266WebServer.h>
#include <ArduinoJson.h>
#include <ESP8266mDNS.h>
#include <WiFiUdp.h>
#include "AppleMidi.h"
#include <ESP8266mDNS.h>
#include <WebSocketsClient.h>
#include <WebSocketsServer.h>
#include "LittleFS.h"
#include <ButtonDebounce.h>

#define PWMRANGE

ESP8266WiFiMulti WiFiMulti;
ESP8266WebServer httpServer(80);
WebSocketsServer webSocketServer(81);
wl_status_t wl_status;

const int FAN_PIN = 16; // Speed Control GPIO for fan
const int CAROUSEL_PIN = 14; // Relay Control GPIO for bubble carousel

const int MIDI_CHANNEL = 11;
const int CONTROL_MIDI_CC = 20;

boolean carouselState;
int fanSpeed;

int whiteButtonValue = 0;
int blackButtonValue = 0;

long lastSecondAt = 0;

int sleep_for = 0;
int run_for = 0;
int sleep_for_reset = 0;
int run_for_reset = 0;

APPLEMIDI_CREATE_INSTANCE(WiFiUDP, AppleMIDI); // see definition in AppleMidi_Defs.h

// Forward declaration
void OnAppleMidiControlChange(byte channel, byte number, byte value);

// When we have a new websocket connection lets report the state of the bubble machine.
void greetConnection(uint8_t num)
{
  String out;
  StaticJsonDocument<256> jsonBuffer;
  jsonBuffer["fan"] = fanSpeed;
  jsonBuffer["carousel"] = carouselState;
  jsonBuffer["runFor"] = run_for;
  jsonBuffer["sleepFor"] = sleep_for;
  jsonBuffer["runForReset"] = run_for_reset;
  jsonBuffer["sleepForReset"] = sleep_for_reset;
  serializeJson(jsonBuffer, out);
  webSocketServer.sendTXT(num, out);
}

// Handle websocket events from html interface
void webSocketEvent(uint8_t num, WStype_t type, uint8_t * payload, size_t lenght)
{
  switch (type)
  {
    case WStype_DISCONNECTED:
      Serial.println("WS Disconnection");
      break;
    case WStype_CONNECTED:
      Serial.println("New WS Connection");
      greetConnection(num);
      break;
    case WStype_TEXT:
      if (payload[0] == '{') {
        processJSONPayload(num, payload);
      }
      break;
  }
}

// Handle JSON Payload events from html/websocket interface
void processJSONPayload(int num, uint8_t * payload)
{
  Serial.println("Recieved Websocket payload:");
  Serial.println((char*)payload);
  DynamicJsonDocument jsonBuffer(4096);
  DeserializationError error = deserializeJson(jsonBuffer, payload);
  if (error)
  {
    Serial.println("Deserialize Error");
  } else {
    if (jsonBuffer.containsKey("fan"))
    {
      setFanSpeed(jsonBuffer["fan"].as<int>());
    }
    if (jsonBuffer.containsKey("carousel"))
    {
      setCarousel(jsonBuffer["carousel"].as<int>() != 0);
    }
    if (jsonBuffer.containsKey("sleepForReset"))
    {
      sleep_for_reset = jsonBuffer["sleepForReset"].as<int>();
    }
    if (jsonBuffer.containsKey("runForReset"))
    {
      run_for_reset = jsonBuffer["runForReset"].as<int>();
    }
    if (jsonBuffer.containsKey("sleepFor"))
    {
      sleep_for = jsonBuffer["sleepFor"].as<int>();
    }
    if (jsonBuffer.containsKey("runFor"))
    {
      run_for = jsonBuffer["runFor"].as<int>();
    }
  }
}

void everySecond()
{
  if (sleep_for > 0 && !carouselState)
  {
    sleep_for--;
    if (wl_status == WL_CONNECTED)
    {
      String out;
      StaticJsonDocument<256> jsonBuffer;
      jsonBuffer["sleepFor"] = sleep_for;
      serializeJson(jsonBuffer, out);
      webSocketServer.broadcastTXT(out);
    }
    if (sleep_for == 0)
    {
      setCarousel(true);
    }
  } else if (run_for > 0 && carouselState) {
    run_for--;
    if (wl_status == WL_CONNECTED)
    {
      String out;
      StaticJsonDocument<256> jsonBuffer;
      jsonBuffer["runFor"] = run_for;
      serializeJson(jsonBuffer, out);
      webSocketServer.broadcastTXT(out);
    }
    if (run_for == 0)
    {
       setCarousel(false);
    }
  }
}

void setup()
{
  // put your setup code here, to run once:
  analogWriteRange(127);
  Serial.begin(115200);
  if (LittleFS.begin())
  {
    //Serial.println("LittleFS INIT OK!");
  } else {
    //Serial.println("LittleFS INIT FAILED!");
  }
  pinMode(FAN_PIN, OUTPUT);
  pinMode(CAROUSEL_PIN, OUTPUT);

  setFanSpeed(127);
  setCarousel(true);
  WiFi.hostname("bubblemachine");
  WiFiMulti.addAP("NETWORK", "PASSWORD");

  wl_status = WiFiMulti.run();

  AppleMIDI.begin("bubblemachine");
  AppleMIDI.OnReceiveControlChange(OnAppleMidiControlChange);

  delay(200);
  Serial.println("INIT");
  httpServer.on("/", handleRoot);
  httpServer.on("/api", jsonRespond );
  httpServer.onNotFound( handleNotFound );
  httpServer.begin();
  webSocketServer.begin();
  webSocketServer.onEvent(webSocketEvent);
  webSocketServer.enableHeartbeat(15000, 5000, 2);
  if (wl_status == WL_CONNECTED)
  {
      tryMDNS();
  }
}

void tryMDNS()
{
  if (MDNS.begin("bubblemachine", WiFi.localIP()))
  {
    MDNS.addService("http", "tcp", 80);
    MDNS.addService("ws", "tcp", 81);
    MDNS.addService("apple-midi", "udp", 5004);
    //Serial.println("mDNS Started");
  } else {
    Serial.println("mDNS Failed to start");
  }
}

void OnAppleMidiControlChange(byte channel, byte number, byte value)
{
  if (channel == MIDI_CHANNEL)
  {
    if (number == CONTROL_MIDI_CC)
    {
      setCarousel(value >= 64);
    }
  }
}

void loop()
{
  long ts = millis();
  if (ts - lastSecondAt >= 1000)
  {
    everySecond();
    lastSecondAt = ts;
  }
  wl_status_t wl_status_new = WiFiMulti.run();
  if (wl_status_new != wl_status)
  {
    wl_status = wl_status_new;
    // Capture moments when we reconnect to the network
    if (wl_status == WL_CONNECTED)
    {
        tryMDNS();
    }
  }
  if (wl_status == WL_CONNECTED)
  {
    MDNS.update();
    AppleMIDI.run();
    httpServer.handleClient();
    webSocketServer.loop();
  }
}

// what we respond to / with....
void jsonRespond( void )
{
    for ( uint8_t i = 0; i < httpServer.args(); i++ )
    {
      String argname = httpServer.argName(i);
      String argvalue = httpServer.arg(i);
      if (argname.equals("fan"))
      {
        setFanSpeed(argvalue.toInt());
      } else if (argname.equals("carousel")) {
        setCarousel(argvalue.toInt());
      }
    }
  String out;
  StaticJsonDocument<256> jsonBuffer;
  jsonBuffer["fan"] = fanSpeed;
  jsonBuffer["carousel"] = carouselState;
  serializeJson(jsonBuffer, out);
  httpServer.send(200, "text/javascript", out);
}


void setCarousel(boolean newValue)
{
  if (newValue)
  {
    digitalWrite(CAROUSEL_PIN, HIGH);
    analogWrite(FAN_PIN, fanSpeed);
    run_for = run_for_reset;
  } else {
    digitalWrite(CAROUSEL_PIN, LOW);
    analogWrite(FAN_PIN, 0);
    sleep_for = sleep_for_reset;
  }
  carouselState = newValue;
  String out;
  StaticJsonDocument<256> jsonBuffer;
  jsonBuffer["carousel"] = carouselState;
  serializeJson(jsonBuffer, out);
  webSocketServer.broadcastTXT(out);
  if (carouselState)
  {
    Serial.println("carousel=1");
  } else {
    Serial.println("carousel=0");
  }
}

void setFanSpeed(int newValue)
{

  fanSpeed = newValue;
  if (carouselState)
  {
    analogWrite(FAN_PIN, fanSpeed);
  }
  String out;
  StaticJsonDocument<256> jsonBuffer;
  jsonBuffer["fan"] = fanSpeed;
  serializeJson(jsonBuffer, out);
  webSocketServer.broadcastTXT(out);
  Serial.print("fan=");
  Serial.println(fanSpeed);
}

// EVERYTHING BELOW HERE IS JUST WEBSERVER STUFF

String getContentType(String filename)
{
  if (filename.endsWith(".htm")) {
    return "text/html";
  } else if (filename.endsWith(".html")) {
    return "text/html";
  } else if (filename.endsWith(".css")) {
    return "text/css";
  } else if (filename.endsWith(".js")) {
    return "application/javascript; charset=utf-8";
  } else if (filename.endsWith(".png")) {
    return "image/png";
  } else if (filename.endsWith(".gif")) {
    return "image/gif";
  } else if (filename.endsWith(".jpg")) {
    return "image/jpeg";
  } else if (filename.endsWith(".ico")) {
    return "image/x-icon";
  } else if (filename.endsWith(".svg")) {
    return "image/svg+xml";
  } else if (filename.endsWith(".xml")) {
    return "text/xml";
  } else if (filename.endsWith(".pdf")) {
    return "application/x-pdf";
  } else if (filename.endsWith(".zip")) {
    return "application/x-zip";
  } else if (filename.endsWith(".gz")) {
    return "application/x-gzip";
  }
  return "text/plain";
}

void handleFileRead(String path)
{
  bool found = false;
  if (path.endsWith("/"))
  {
    path += "index.html";
  }
  String contentType = getContentType(path);
  File file = LittleFS.open(path, "r");
  if (!file)
  {
    //Serial.print("file not found: ");
    //Serial.println(path);
  } else {
    httpServer.streamFile(file, contentType);
    file.close();
    found = true;
  }
  if (!found)
  {
    String message = "File Not Found\n\n";
    message += "URI: ";
    message += httpServer.uri();
    message += "\nMethod: ";
    message += ( httpServer.method() == HTTP_GET ) ? "GET" : "POST";
    message += "\nArguments: ";
    message += httpServer.args();
    message += "\n";
    message += "Path: ";
    message += path;
    message += "\n";

    for ( uint8_t i = 0; i < httpServer.args(); i++ )
    {
      message += " " + httpServer.argName ( i ) + ": " + httpServer.arg ( i ) + "\n";
    }
    httpServer.send ( 404, "text/plain", message );
  }
}

void handleRoot()
{
  handleFileRead(httpServer.uri());
}

void handleNotFound()
{
  handleFileRead(httpServer.uri());
}


If you are feeling generous and would like to support this project

Downloads

Latest Update: August 17 2021 02:55:20 PM EDT
